Pris: Kr. 79.800,-
eks. mva.

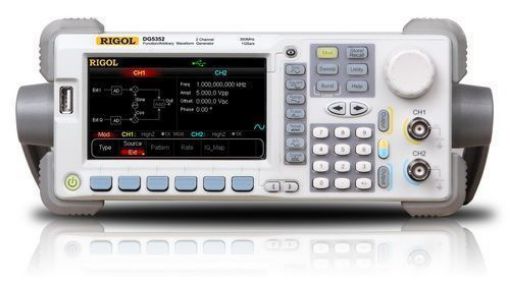

Series Function/Arbitrary Waveform Generator
DG5000 is a multifunctional generator that combines many functions in one, including Function Generator, Arbitrary Waveform Generator, IQ Baseband Source/IQ IF Source, Frequency Hopping Source (optional) and Pattern Generator (optional). It provides single and dual-channel models. The dual-channel model, with two channels having complete equivalent functions and precisely adjustable phase deviation between the two channels, is a real dual-channel signal generator. DG5000, adopting the Direct Digital Synthesizer (DDS) technology, can provide stable, precise, pure and low distortion signal. The user-friendly interface design and panel layout bring users exceptional experience. Besides, the remote control of the generator can be easily done through different standard configuration interfaces, which provides more solutions for users.
Features and Benefits
- 4.3 inches, 16M true color TFT LCD
- 350 MHz, 250 MHz or 100 MHz maximum sine output frequency, 1 GSa/s sample rate, 14 bits resolution
- Single/dual-channel models. The dual-channel model supports frequency and phase coupling
- The 16+2 channels digital output module (optional) together with the analog channel can rebuild the more mixed signals in daily practice
- Support an external power amplifier (optional) that can be configured online
- Support frequency hopping output(optional) with hopping interval up to 80 ns and arbitrary editing frequency hopping patterns
- 14 standard waveform functions: Sine, Square, Ramp, Pulse, Noise, Sinc, Exponential Rise, Exponential Fall, ECG, Gauss,Haversine, Lorentz, Dual Tones and DC
- Rise/Fall Time of the Pulse could be adjusted separately
- Enable to edit arbitrary waveform up to 512 kpts and output arbitrary waveforms up to 128 Mpts
- Support AM, FM, PM, ASK, FSK, PSK and PWM modulations
- Support user-defined IQ vector signal modulation and IQ baseband/IF source output
- Support Frequency Sweep and Burst output
- Abundant I/O: waveform output, synchronous signal output, modulation input, 10 MHz clock input/output, trigger input/output
- Enable to store and recall waveform data and instrument state, and support versatile file types
- Standard configuration with 1 GBytes flash memory
- Plenty of standard interfaces: double USB Hosts, USB Device, LAN, and GPIB (IEEE-488.2)
- Seamlessly interconnected with RIGOL USB-TMC digital oscilloscopes for loading and reappearing waveforms
- Support USB flash device storage for FAT files
- Support PictBridge printer Provide security lock hole
- Support remote control through 10/100M Ethernet web
- Conform to LXI-C instrument standards (Version 1.2)
- Provide Chinese and English built-in help and input methods
- Provide powerful waveform editing PC software
