Modell 50F-xxx er et 50 ohm koaksialt fast dempeledd med en maksimal RF-inngangseffekt på 1 watt.
For dempeverdier mellom 1–20 dB fungerer enheten i frekvensområdet DC–2200 MHz.
For dempeverdier mellom 21–30 dB fungerer enheten i frekvensområdet DC–1000 MHz.
RF-kontakter: BNC, N, SMA, TNC
| Modell | Impedans | Frekvens | RF-inngangseffekt | Dempeverdi | RF-kontakter |
|---|---|---|---|---|---|
| 50F-XXX | 50 Ohm | DC-2.2 GHz | 1 Watt | 1-30 dB | BNC, N, SMA, TNC |
| 50FP-XXX-H2 | 50 Ohm | DC-2 GHz | 2 Watt | 1-65 dB | BNC, N, RP-TNC, SMA, TNC, 7/16, 4.3/10.0 |
| 50FP-XXX-H3 | 50 Ohm | DC-3 GHz | 2 Watt | 1-30 dB | BNC, N, SMA, TNC, 7/16, 4.3/10.0 |
| 50FP-XXX-H4 | 50 Ohm | DC-4 GHz | 2 Watt | 1-30 dB | BNC, N, SMA, TNC |

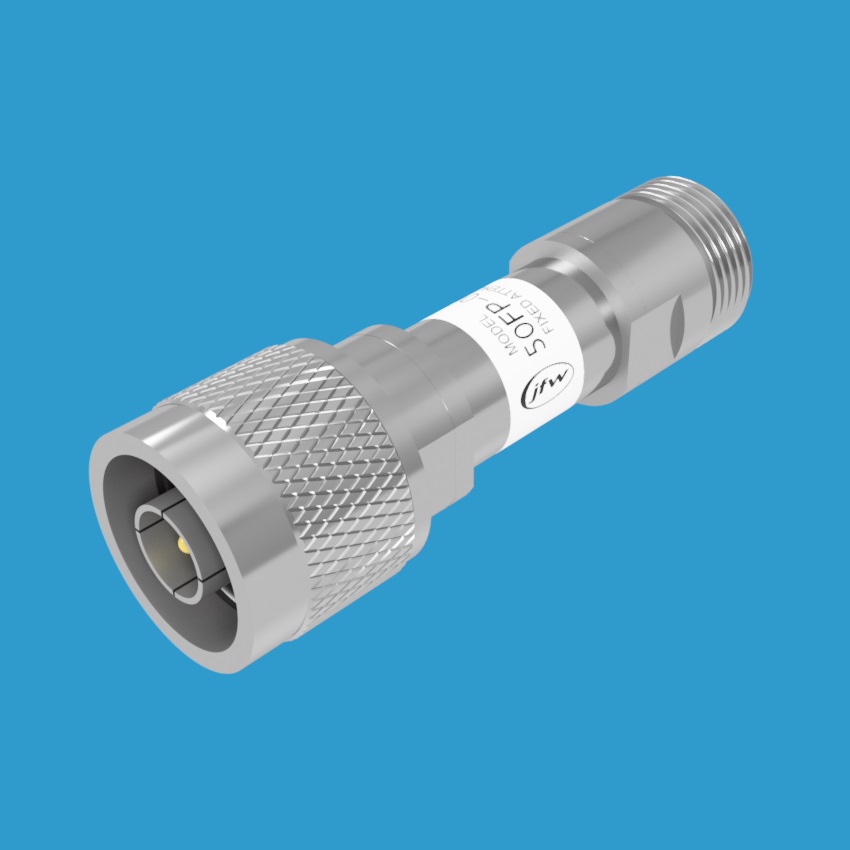

| 50FP-XXX-H6 | 50 Ohm | DC-6 GHz | 2 Watt | 1-20 dB | N, SMA, TNC, 4.3/10.0 |
| 50HFFA-XXX-2/6 | 50 Ohm | DC-6 GHz | 2 Watt | 0-30, 40, 50, 60 dB | N, SMA |
| 50HFFA-XXX-2/8 | 50 Ohm | DC-8.4 GHz | 2 Watt | 0-30, 40, 50, 60 dB | N, SMA |
| 50HFFA-XXX-2/18 | 50 Ohm | DC-18 GHz | 2 Watt | 0-30, 40, 50, 60 dB | N, SMA, TNC |
| 50HFFA-XXX-2/26 | 50 Ohm | DC-26.5 GHz | 2 Watt | 1-10, 20, 30 dB | SMA |
| 50HFFB-XXX-2/40 | 50 Ohm | DC-40 GHz | 2 Watt | 0-10, 15, 20, 30 dB | 2.92mm |
