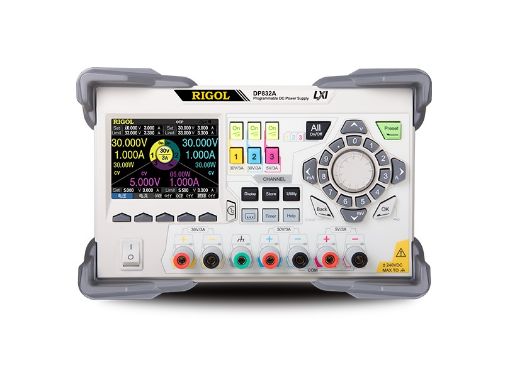

Rigol DP800 Strømforsyning

DP800 Series Programmable Linear DC Power Supply

• DP832A/DP832: 3 outputs, 30V/3A || 30V/3A, 5V/3A, total power up to 195W
• DP831A/DP831: 3 outputs, 8V/5A || 30V/2A, -30V/2A, total power up to 160W
• DP822A/DP822: 2 outputs, 20V/5A || 5V/16A, with remote Sense, total power up to 180W
• DP821A/DP821: 2 outputs, 60V/1A || 8V/10A, with remote Sense, total power up to 140W
• DP813A/DP813: 1 output, 8V/20A (Low Range), 20V/10A (High Range), with remote Sense, total power up to 200W
• DP811A/DP811: 1 output, 20V/10A (Low Range), 40V/5A (High Range), with remote Sense, total power up to 200W


• Low ripple and noise:
   DP832A/DP832/DP831A/DP831/DP822A/DP822/DP821A/DP821: <350uVrms/2mVpp
   DP813A/DP813/DP811A/DP811: <350uVrms/3mVpp


• Excellent linear regulation rate and load regulation rate
• Fast transient response time: <50μs
• Some channels are isolated
• Standard OVP/OCP/OTP protection functions
• Standard timing output
• Built-in V,A,W measurements and waveform display
• Independent control for each channel
• Support more advanced functions: timer and delay output(standard),
  recorder/analyzer/monitor/trigger(standard for "+A" models and optional for other models)
• 3.5-inch TFT display
• Various interfaces: USB Host&Device(standard), USB-GPIB (optional),
  LAN/RS232/Digital IO(standard for "+A" models and optional for other models)
