    2 Watt Fixed Attenuator DC-2GHz

    Impedance: 50 Ohm
    Frequency Range: DC-2000 MHz
    RF Input Power: 2 Watts
    Attenuation Values: 1-65 dB
    RF Connectors: BNC, N, RP-TNC, SMA, TNC, 7/16, 4.3/10.0

    www.jfwindustries.com

    Varenr: 50FP-XXX-H2
    i h

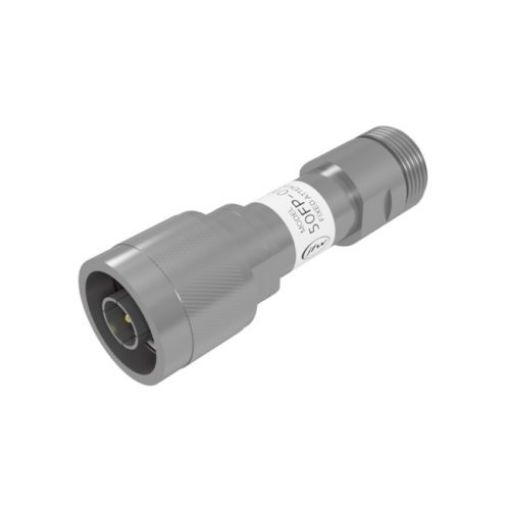

    Model 50FP-xxx-H2 is a 50 Ohm coaxial fixed attenuator rated at 2 Watts maximum RF input power and operates DC-2000MHz.  Available dB values from 1dB to 65dB.

    For model 50FP-XXX-H2, replace the XXX with the desired attenuation value and add the RF connector type at the end to create the full model number.

    Example Model Numbers:

    50FP-001-H2 BNC   (1dB with BNC male/female)                          50FP-036-H2 4.3-10.0   (36dB with 4.3-10.0 male/female)
    50FP-002-H2 BNC   (2dB with BNC male/female)                          50FP-037-H2 4.3-10.0   (37dB with 4.3-10.0 male/female)
    50FP-003-H2 BNC   (3dB with BNC male/female)                          50FP-038-H2 4.3-10.0   (38dB with 4.3-10.0 male/female)
    50FP-004-H2 BNC   (4dB with BNC male/female)                          50FP-039-H2 4.3-10.0   (39dB with 4.3-10.0 male/female)
    50FP-005-H2 BNC   (5dB with BNC male/female)                          50FP-040-H2 4.3-10.0   (40dB with 4.3-10.0 male/female)
    50FP-006-H2 BNC   (6dB with BNC male/female)
    50FP-007-H2 BNC   (7dB with BNC male/female)                          50FP-041-H2 7/16   (41dB with 7/16 male/female)
    50FP-008-H2 BNC   (8dB with BNC male/female)                          50FP-042-H2 7/16   (42dB with 7/16 male/female)
    50FP-009-H2 BNC   (9dB with BNC male/female)                          50FP-043-H2 7/16   (43dB with 7/16 male/female)
    50FP-010-H2 BNC   (10dB with BNC male/female)                        50FP-044-H2 7/16   (44dB with 7/16 male/female)
                                                                                                                     50FP-045-H2 7/16   (45dB with 7/16 male/female)
    50FP-011-H2 TNC   (11dB with TNC male/female)                         50FP-046-H2 7/16   (46dB with 7/16 male/female)
    50FP-012-H2 TNC   (12dB with TNC male/female)                         50FP-047-H2 7/16   (47dB with 7/16 male/female)
    50FP-013-H2 TNC   (13dB with TNC male/female)                         50FP-048-H2 7/16   (48dB with 7/16 male/female)
    50FP-014-H2 TNC   (14dB with TNC male/female)                         50FP-049-H2 7/16   (49dB with 7/16 male/female)
    50FP-015-H2 TNC   (15dB with TNC male/female)                         50FP-050-H2 7/16   (50dB with 7/16 male/female)
    50FP-016-H2 TNC   (16dB with TNC male/female)
    50FP-017-H2 TNC   (17dB with TNC male/female)                         50FP-051-H2 RPT   (51dB with Reverse Polarity TNC male/female)
    50FP-018-H2 TNC   (18dB with TNC male/female)                         50FP-052-H2 RPT   (52dB with Reverse Polarity TNC male/female)
    50FP-019-H2 TNC   (19dB with TNC male/female)                         50FP-053-H2 RPT   (53dB with Reverse Polarity TNC male/female)
    50FP-020-H2 TNC   (20dB with TNC male/female)                         50FP-054-H2 RPT   (54dB with Reverse Polarity TNC male/female)
                                                                                                                      50FP-055-H2 RPT   (55dB with Reverse Polarity TNC male/female)
    50FP-021-H2 SMA   (21dB with SMA male/female)                        50FP-056-H2 RPT   (56dB with Reverse Polarity TNC male/female)
    50FP-022-H2 SMA   (22dB with SMA male/female)                        50FP-057-H2 RPT   (57dB with Reverse Polarity TNC male/female)
    50FP-023-H2 SMA   (23dB with SMA male/female)                        50FP-058-H2 RPT   (58dB with Reverse Polarity TNC male/female)
    50FP-024-H2 SMA   (24dB with SMA male/female)                        50FP-059-H2 RPT   (59dB with Reverse Polarity TNC male/female)
    50FP-025-H2 SMA   (25dB with SMA male/female)                        50FP-060-H2 RPT   (60dB with Reverse Polarity TNC male/female)
    50FP-026-H2 SMA   (26dB with SMA male/female)
    50FP-027-H2 SMA   (27dB with SMA male/female)
    50FP-028-H2 SMA   (28dB with SMA male/female)                        50FP-061-H2 N   (61dB with N male/female)
    50FP-029-H2 SMA   (29dB with SMA male/female)                        50FP-062-H2 N   (62dB with N male/female)
    50FP-030-H2 SMA   (30dB with SMA male/female)                        50FP-063-H2 N   (63dB with N male/female)
                                                                                                                      50FP-064-H2 N   (64dB with N male/female)
    50FP-031-H2 4.3-10.0   (31dB with 4.3-10.0 male/female)            50FP-065-H2 N   (65dB with N male/female)
    50FP-032-H2 4.3-10.0   (32dB with 4.3-10.0 male/female)
    50FP-033-H2 4.3-10.0   (33dB with 4.3-10.0 male/female)
    50FP-034-H2 4.3-10.0   (34dB with 4.3-10.0 male/female)
    50FP-035-H2 4.3-10.0   (35dB with 4.3-10.0 male/female)



    *
    *
    *
